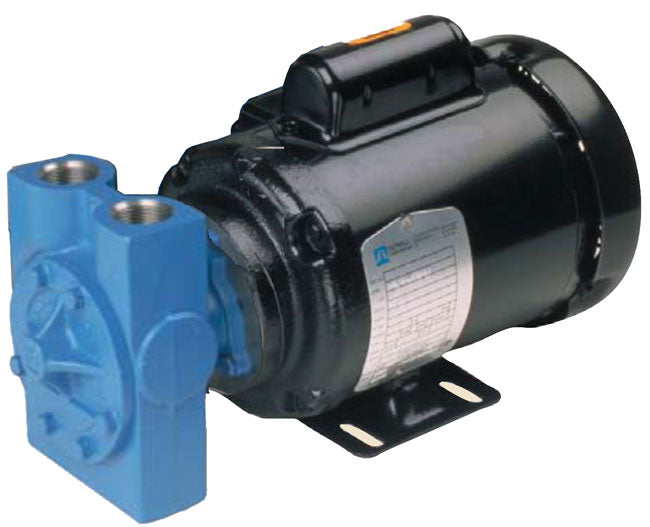

Tuthill # 5LE-A-7-89268 Pump and Motor

Cast Iron Rotary Gear Pump with Motor Assembly – Includes an A-type tang shaft and is equipped with a Viton mechanical shaft seal and o-ring, along with Viton elastomers. Features 1 inch NPT inlet and outlet ports. The pump is close-coupled and mounted to a 1.5 horsepower, 1725 RPM electric motor with a 56YZ NEMA frame. The motor operates on 208-230/460 volts, three-phase power, and has a TEFC (Totally Enclosed Fan Cooled) enclosure.
