Oberdorfer Pump # 70P Centrifugal Pedestal Pump Head
Oberdorfer Pump # 70P Centrifugal Pedestal Pump Head

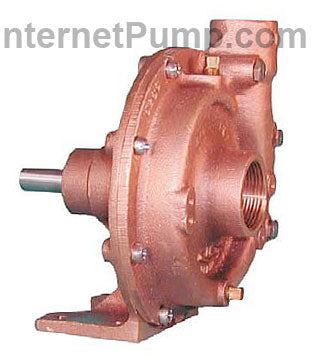

Oberdorfer 70P Centrifugal Pedestal Pump Head Only, Bronze, Buna Mechanical Seal, 1-1/4" X 1"NPT Ports.
Regular price
$ 805.60 USD
Regular price
Sale price
$ 805.60 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: Inlet: 1-1/4" NPT Outlet: 1" NPT
Flow: 96 GPM Max
Pressure: 30 PSI Max, 70 feet of head
Impeller: Centrifugal
Shaft Seal: Buna Mechanical Seal (Carbon/Ceramic) Standard,Viton Mechanical Seal (S-10) or Teflon Mechanical Seal (S-11) Optional
Shaft: Heavy Duty Integral Steel Shaft and Ball Bearings
Motor / Drive: Designed for Pulley Drive. Many motor options available. We can supply optional motors and assemble for you.
APPLICATIONS:
BRONZE PEDESTAL CENTRIFUGAL PUMPS The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Rugged bronze construction. Extremely quiet operation. O-ring housing seal eliminates gasket problems. Handles contaminated liquids. For marine version see Model 109MB. For pedestal style version see Model 700.
View full details
Pump Body: Bronze
Ports: Inlet: 1-1/4" NPT Outlet: 1" NPT
Flow: 96 GPM Max
Pressure: 30 PSI Max, 70 feet of head
Impeller: Centrifugal
Shaft Seal: Buna Mechanical Seal (Carbon/Ceramic) Standard,Viton Mechanical Seal (S-10) or Teflon Mechanical Seal (S-11) Optional
Shaft: Heavy Duty Integral Steel Shaft and Ball Bearings
Motor / Drive: Designed for Pulley Drive. Many motor options available. We can supply optional motors and assemble for you.
APPLICATIONS:
BRONZE PEDESTAL CENTRIFUGAL PUMPS The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Rugged bronze construction. Extremely quiet operation. O-ring housing seal eliminates gasket problems. Handles contaminated liquids. For marine version see Model 109MB. For pedestal style version see Model 700.
