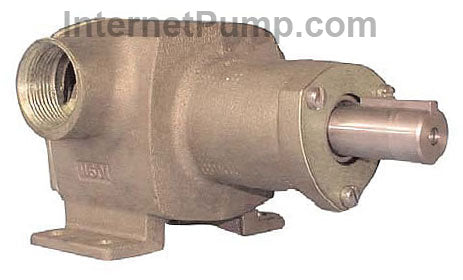

Oberdorfer Pump # 501M-06 Flexible Impeller Pump Head
Oberdorfer Pump # 501M-06 Flexible Impeller Pump Head
Oberdorfer 501M-06 Flexible Impeller Pump Head Only, Bronze, 1-1/4"NPT Ports, Buna Impeller.
Regular price
$ 1,975.00 USD
Regular price
Sale price
$ 1,975.00 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: 1 1/4" NPT
Flow: 58 GPM Max
Pressure: 56 PSI Max, 130 feet of head
Impeller: Neoprene Standard, Buna Optional
Shaft Seal: Mechanical Carbon Ring, Ceramic Face Main Pump Seal
Shaft: Stainless Steel Shaft 1"
Motor / Drive: Either direct drive with flexible coupling or pulley drive can be used. We have many motors available and can assemble for you.
APPLICATIONS:
BRONZE PEDESTAL RUBBER IMPELLER PUMP WITH OR WITHOUT MANUAL OR ELECTRIC CLUTCH Flanged Engine mount SAE ‘B’ version also available (501-07). Direction of shaft rotation determines inlet and outlet ports. Machined-in cam for reduced impeller wear. Impeller easily replaced. Teflon Barrier Seals Protecting Ball Bearings. Suction lift of 15 feet is possible when impeller is wet.
View full details
Pump Body: Bronze
Ports: 1 1/4" NPT
Flow: 58 GPM Max
Pressure: 56 PSI Max, 130 feet of head
Impeller: Neoprene Standard, Buna Optional
Shaft Seal: Mechanical Carbon Ring, Ceramic Face Main Pump Seal
Shaft: Stainless Steel Shaft 1"
Motor / Drive: Either direct drive with flexible coupling or pulley drive can be used. We have many motors available and can assemble for you.
APPLICATIONS:
BRONZE PEDESTAL RUBBER IMPELLER PUMP WITH OR WITHOUT MANUAL OR ELECTRIC CLUTCH Flanged Engine mount SAE ‘B’ version also available (501-07). Direction of shaft rotation determines inlet and outlet ports. Machined-in cam for reduced impeller wear. Impeller easily replaced. Teflon Barrier Seals Protecting Ball Bearings. Suction lift of 15 feet is possible when impeller is wet.
