Oberdorfer Pump # 121B Helical Rotor Pump
Oberdorfer Pump # 121B Helical Rotor Pump

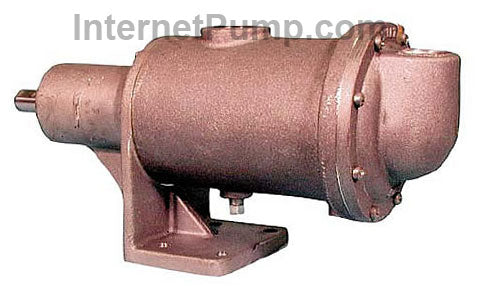

Oberdorfer 121B Helical Rotor Pump, Pedestal Mount, Bronze, 3/4"NPT Ports.
Regular price
$ 1,338.27 USD
Regular price
Sale price
$ 1,338.27 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship it out Monday.
Couldn't load pickup availability
FEATURES :
Pump Body: All Bronze or Corrosion Resistant Aluminum Construction
Ports: 3/4" NPT
Flow: 8.5 GPM Max
Pressure: 100 PSI Max
Stator / Rotor: Buna Stator and Stainless Steel Rotor
Shaft Seal: Carbon Face Mechanical Seal
Motor / Drive: Designed for Pulley Drive Applications We can supply motors and assemble if required.
APPLICATIONS:
BRONZE OR ALUMINUM PEDESTAL HELICAL ROTOR PUMP The turning of the helical shaped rotor within the stationary stator creates a progressing cavity similar to a moving piston. Liquid is thus displaced generating a pumping action. Unlike piston pumping, extremely high pressure cannot be created because the stator is made of Buna N and is flexible. Because of this flexibility contaminated liquids can be handled. Close fit of the rotor within the stator permits lifting of liquid on the suction side as high as 20 ft.
