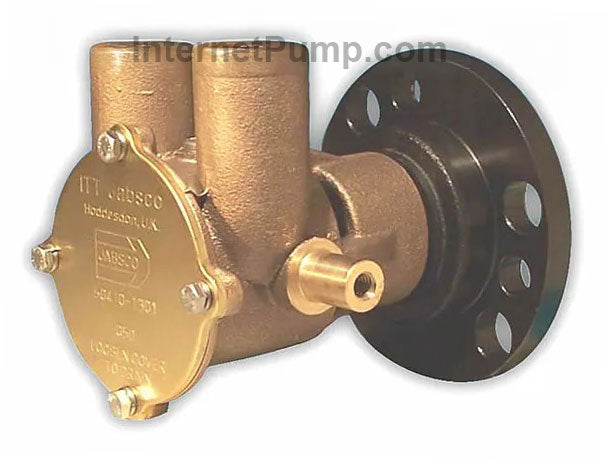

Jabsco Pump # 50410-1351 Engine Cooling Pump
Jabsco Pump # 50410-1351 Engine Cooling Pump
Jabsco 50410-1351 Engine Cooling Pump, Crankshaft Mount, Small Block Chevy, 1/2 Cam, Mechanical Seal.
Regular price
$ 826.59 USD
Regular price
Sale price
$ 826.59 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 3 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Port Size: 1-1/4" (31.75mm) Hose Barb
Pressure: 10 PSI Max
Impeller: Neoprene
Shaft Seal: Buna N Lip Seal or Mechanical Face Seal, See Note Below
Shaft: 316 Stainless Steel
APPLICATIONS:
CRANKSHAFT MOUNT MARINE ENGINE COOLING PUMPS50410-1251 And 50410-1351 Fit: 305 & 350 C.I. Chevrolet Block50410-1201 And 50410-1301 Fit: 454 C.I. Chevrolet Block50410-1401 And 50410-1501 Fit: 8.1 Liter Chevrolet Block The Mechanical Seal Pump Models Are Longer From Front To Back Than The Lip Seal Models.The Location Of The Hose Ports And The Torque Arm Mounting Lug Will Be Different For The Mechanical Seal Pumps And The Lip Seal Pumps.The Mechanical Seal Pumps Are 4.96 Inches From The Front Of The Cover Bolts To The Rear Of The Mounting Flange.The Lip Seal Pumps Are 4.12 Inches From The Front Of The Cover Bolts To The Rear Of The Mounting Flange.
