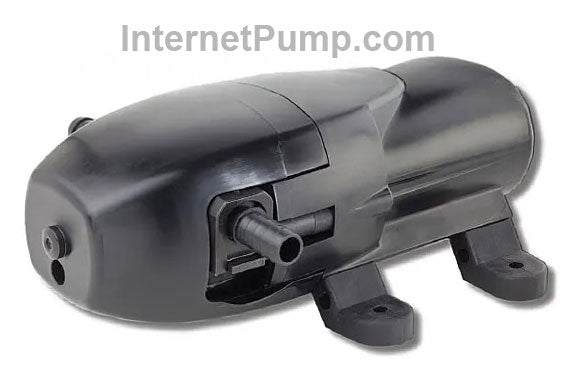

Jabsco Pump # 42630-3512-3C Par-Max 1 Water System Pump
Jabsco Pump # 42630-3512-3C Par-Max 1 Water System Pump
Jabsco 42630-3512-3C Par-Max 1 Water System Pump, 12V, Up To 1.0 GPM At Open Flow, 35psi Switch, 3/8" Hose Barb Ports With 3/8" x 1/2" Adapter, RSM, CE, ISO 8846 Rated.
Regular price
$ 162.98 USD
Regular price
Sale price
$ 162.98 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 1 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Polyrpropylene
Port Size: Pump housing inlet and outlet fittings are 3/8" hose barb.Also includes a slip-on adapter for 1/2" ID hose.
Flow: 1.0 or 1.1 GPM At Open Flow As Noted In The Description.
Pressure: 42630-series: 35 PSI Switch.42631-2900: No Switch, 35 PSI Maximum.
Diaphragm: Two chamber opposed double diaphragm design.
Motor: Permanent Magnet, Thermally Protected, Intermittent Duty. Meets U.S.C.G. Electrical Requirements.
APPLICATIONS:
Self-priming up to 4 feet of suction lift. Up to 6 feet for the Par-Max 1 Plus Models. Pump able to run dry without damage. The JABSCO Par-Max 1 series pumps are available as automatic and manual demand pumps. The 42630-series pumps will automatically turn on when a fixture is opened and turn off when all fixtures are closed. The 42631-2900 is a manual demand pump for use with an electric faucet.
View full details
Pump Body: Polyrpropylene
Port Size: Pump housing inlet and outlet fittings are 3/8" hose barb.Also includes a slip-on adapter for 1/2" ID hose.
Flow: 1.0 or 1.1 GPM At Open Flow As Noted In The Description.
Pressure: 42630-series: 35 PSI Switch.42631-2900: No Switch, 35 PSI Maximum.
Diaphragm: Two chamber opposed double diaphragm design.
Motor: Permanent Magnet, Thermally Protected, Intermittent Duty. Meets U.S.C.G. Electrical Requirements.
APPLICATIONS:
Self-priming up to 4 feet of suction lift. Up to 6 feet for the Par-Max 1 Plus Models. Pump able to run dry without damage. The JABSCO Par-Max 1 series pumps are available as automatic and manual demand pumps. The 42630-series pumps will automatically turn on when a fixture is opened and turn off when all fixtures are closed. The 42631-2900 is a manual demand pump for use with an electric faucet.
