Jabsco Pump # 37045-0094 Quiet Flush Electric Toilet
Jabsco Pump # 37045-0094 Quiet Flush Electric Toilet

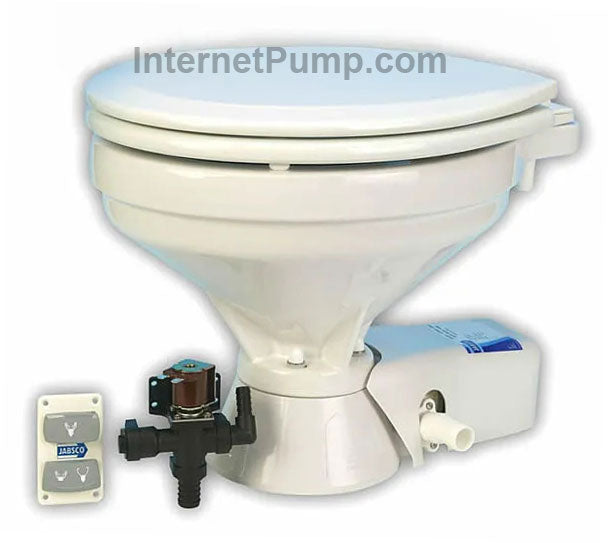

Jabsco 37045-0094 Quiet Flush Electric Toilet 24V Compact Bowl.
Regular price
$ 606.71 USD
Regular price
Sale price
$ 606.71 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 1 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
Download PDF Manual
FEATURES :
Toilet: White Vitreous China Bowl Available in Two Sizes
Port Size: Inlet 3/4" Hose Barb Outlet 1" Hose Barb
Seat: Baked Enamel Seat & Cover in Compact or Household Size
Supply Water : Can be plumbed to any pressurized water system that can provide a 3-1/2 GPM (13.5 LPM) flow rate.
Pump: High capacity waste macerator and bowl discharge pump.
Motor: MOTOR Meet U.S.C.G. Regulation & SWITCH 183.410 and ISO 8846 MARINE for Ignition Protection.
APPLICATIONS:
The Quiet-Flush toilet provides both quiet operation and user control of water levels in the toilet bowl. A single large push button switch provides a simple flush mode by activating both the rinse water supply and the macerator discharge pump simultaneously. An additional rocker switch offers independent control of the rinse water supply and discharge pump separately so the bowl water level can be easily raised or lowered by the user. This provides a method of minimizing water use, when desired, as well as a means of raising the water level in the bowl when appropriate for user comfort. It also allows for complete evacuation of the bowl water while underway in rough sea conditions. Water control solenoid valve with anti-siphon breaker to prevent contamination of potable water supply. 1-2 Quarts (Litres) per Flush.
