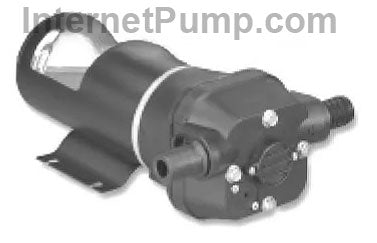

Jabsco Pump # 31820-0494 Industrial Diaphragm Pump
Jabsco Pump # 31820-0494 Industrial Diaphragm Pump
Jabsco 31820-0494 Industrial Diaphragm Pump 24V 3GPM No Switch.
Regular price
$ 385.10 USD
Regular price
Sale price
$ 385.10 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 9 in stock, and can ship it out Monday.
Couldn't load pickup availability
FEATURES :
Pump Body: Glass Filled Polypropylene, Four Piston, Diaphragm Pump
Port Size: Snap-in 1/2" (13 mm) Hose Barb and 1/2" (13 mm) Straight Pipe Thread
Flow: 3 GPM/12 LPM
Pressure: Continuous, Maximum 40 psi (2.8 bar) at Ambient of 130° F (54.4° C). No Switch.
Elastomers: Santoprene Diaphragm, Valves of Viton
Motor: Commercial Duty, Permanent Magnet with Thermal Overload Protection. Corrosion Protected. Conforms to Electromagnetic Compatibility 89/336/EEC and Machinery Directive 89/392/EEC, EN50081-1
APPLICATIONS:
Self-Priming to 10 ft. (3 m). Runs Dry Without Damage. Smooth Flow. Snap-in Ports. CONSTRUCTION: Water supply pump to the spray bars of road rollers and other compaction equipment, street sweepers, and truck mounted dust control systems. AGRICULTURAL: Supply pump for herbicide and pesticide spraying equipment. INDUSTRIAL: Fluid transfer applications for mild acids and bases. Chemical feed pump. Washing fluid supply pump in parts washing systems. Machine coolant pump. Concrete saw lubricant supply pump. Recirculating pump in filtering systems.
View full details
Pump Body: Glass Filled Polypropylene, Four Piston, Diaphragm Pump
Port Size: Snap-in 1/2" (13 mm) Hose Barb and 1/2" (13 mm) Straight Pipe Thread
Flow: 3 GPM/12 LPM
Pressure: Continuous, Maximum 40 psi (2.8 bar) at Ambient of 130° F (54.4° C). No Switch.
Elastomers: Santoprene Diaphragm, Valves of Viton
Motor: Commercial Duty, Permanent Magnet with Thermal Overload Protection. Corrosion Protected. Conforms to Electromagnetic Compatibility 89/336/EEC and Machinery Directive 89/392/EEC, EN50081-1
APPLICATIONS:
Self-Priming to 10 ft. (3 m). Runs Dry Without Damage. Smooth Flow. Snap-in Ports. CONSTRUCTION: Water supply pump to the spray bars of road rollers and other compaction equipment, street sweepers, and truck mounted dust control systems. AGRICULTURAL: Supply pump for herbicide and pesticide spraying equipment. INDUSTRIAL: Fluid transfer applications for mild acids and bases. Chemical feed pump. Washing fluid supply pump in parts washing systems. Machine coolant pump. Concrete saw lubricant supply pump. Recirculating pump in filtering systems.
