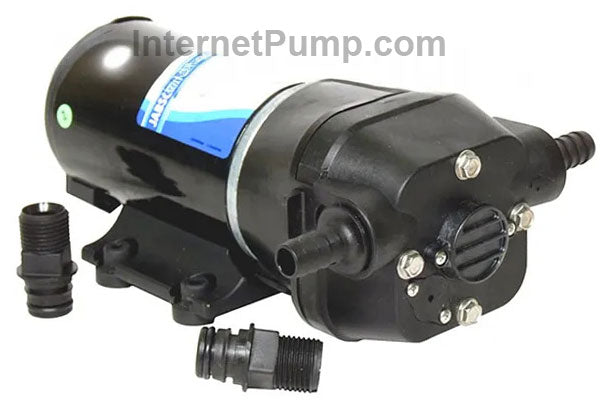

Jabsco Pump # 31800-0094 Industrial Diaphragm Pump
Jabsco Pump # 31800-0094 Industrial Diaphragm Pump
Jabsco 31800-0094 Industrial Diaphragm Pump 24Volt No Switch.
Regular price
$ 317.58 USD
Regular price
Sale price
$ 317.58 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 12 in stock, and can ship it out Monday.
Couldn't load pickup availability
FEATURES :
Pump Body: Glass Filled Polypropylene, Four Piston, Diaphragm Pump
Port Size: Snap-in 1/2" (13 mm) Hose Barb and 1/2" (13 mm) Straight Pipe Thread
Flow: 4 GPM/15 LPM
Pressure: Continuous 15 psi, Maximum 40 psi (2.8 bar) at Ambient of 130° F (54.4° C).31800 Series: No Switch31801 Series: Cut-In 20 PSI, Cut-Out 40 PSI.
Elastomers: Diaphragm: SantopreneValves: Viton
Motor: Permanent Magnet with Thermal Overload Protection. Continuous duty at 15 psi (1 bar) and 70°F (21°C) ambient temperature.
APPLICATIONS:
Self-Priming to 10 ft. (3 m) (wet) 5 ft. (1.5m) (dry). Runs Dry Without Damage. Smooth Flow. Snap-in Ports. Temperature: Liquid temperature range is 45°F to 130°F (7°C to 54°C). Viscosity: 250 cP maximum. CONSTRUCTION – Water supply pump to the spray bars of road rollers and other compaction equipment, street sweepers, and truck mounted dust control systems. Superior equipment washdown results can be enjoyed with the 31800 31801 Series pumps.AGRICULTURAL – Supply pump for herbicide and pesticide sprayers and sprayboom equipment. INDUSTRIAL – Fluid transfer applications for mild acids and bases. Chemical feed pump. Washing fluid supply pump in parts washing systems. Machine coolant pump. Concrete saw lubricant supply pump. Recirculating pump in filtering systems. NOTE: Viton equipped models are not suitable for potable water applications.
View full details
Pump Body: Glass Filled Polypropylene, Four Piston, Diaphragm Pump
Port Size: Snap-in 1/2" (13 mm) Hose Barb and 1/2" (13 mm) Straight Pipe Thread
Flow: 4 GPM/15 LPM
Pressure: Continuous 15 psi, Maximum 40 psi (2.8 bar) at Ambient of 130° F (54.4° C).31800 Series: No Switch31801 Series: Cut-In 20 PSI, Cut-Out 40 PSI.
Elastomers: Diaphragm: SantopreneValves: Viton
Motor: Permanent Magnet with Thermal Overload Protection. Continuous duty at 15 psi (1 bar) and 70°F (21°C) ambient temperature.
APPLICATIONS:
Self-Priming to 10 ft. (3 m) (wet) 5 ft. (1.5m) (dry). Runs Dry Without Damage. Smooth Flow. Snap-in Ports. Temperature: Liquid temperature range is 45°F to 130°F (7°C to 54°C). Viscosity: 250 cP maximum. CONSTRUCTION – Water supply pump to the spray bars of road rollers and other compaction equipment, street sweepers, and truck mounted dust control systems. Superior equipment washdown results can be enjoyed with the 31800 31801 Series pumps.AGRICULTURAL – Supply pump for herbicide and pesticide sprayers and sprayboom equipment. INDUSTRIAL – Fluid transfer applications for mild acids and bases. Chemical feed pump. Washing fluid supply pump in parts washing systems. Machine coolant pump. Concrete saw lubricant supply pump. Recirculating pump in filtering systems. NOTE: Viton equipped models are not suitable for potable water applications.
