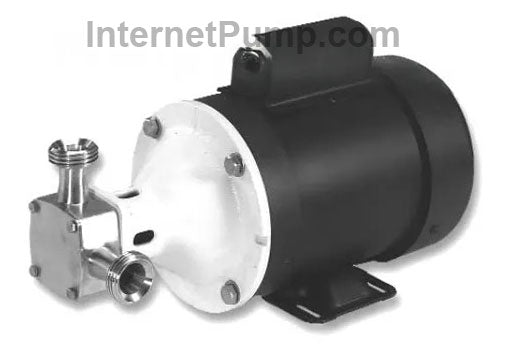

Jabsco Pump # 30560-4005 Motor Pump Unit 316SS
Jabsco Pump # 30560-4005 Motor Pump Unit 316SS
Jabsco 30560-4005 Motor Pump Unit 316SS 1" Acme Ports Neoprene Impeller Carbon Seal 1-1/2HP 115/230V TEFC.
Regular price
$ 5,468.03 USD
Regular price
Sale price
$ 5,468.03 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: 316 Stainless Head with Bracket or Complete Motor Pump Unit
Port Size: 1" ACME Threads with Bevel Seat or Clamp Type
Flow: Nominal 21.5 USgallons/min (81.4 Litres/min) at 1750rpm
Pressure: Pressure up to 2 bar
Impeller: 3A Food Grade Neoprene or EPDM
Shaft Seal: Mechanical; Carbon-on-Ceramic or Tungsten Carbide; Food Grade Nitrile
Shaft: 316 Stainless Steel
Motor: 115/230 Vac, Single Phase, 60Hz, 1-1/2 HP, H145 TC Frame, C-Face, 1740 RPM, TEFC, Overload Protected, Capacitor Start.
APPLICATIONS:
Handles soft solids - max. 12mm diameter. Certified to US 3A Standard 02-09. Clean-In-Place (CIP) or easy strip clean. Handles viscosities up to 50,000 centiPoise. Minimal shear to thixotropic fluids. Easy to service and maintain. Self-priming from dry up to 2.4m (7.8ft). DAIRY: Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS: Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter. BEVERAGE: Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL: Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
