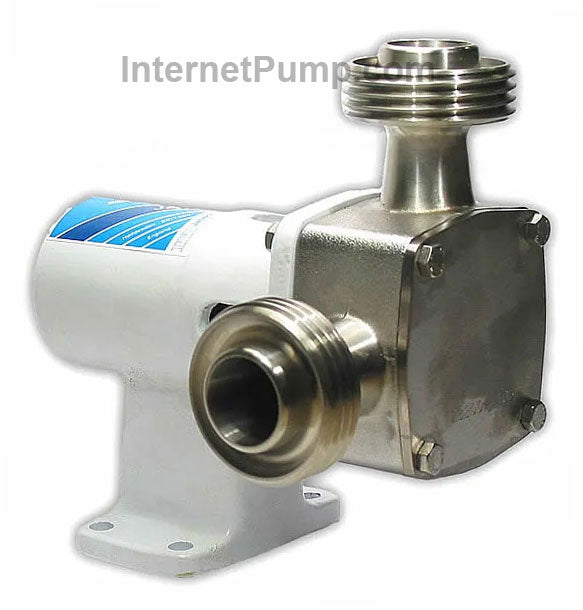

Jabsco Pump # 30560-0005 Pedestal Pump 316SS
Jabsco Pump # 30560-0005 Pedestal Pump 316SS
Jabsco 30560-0005 Pedestal Pump 316SS 1" Acme Ports Std Pressure Neoprene Impeller Carbon Seal.
Regular price
$ 4,458.84 USD
Regular price
Sale price
$ 4,458.84 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 1 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: 316 Stainless Steel Pedestal Pump
Port Size: 1" ACME Threads with Bevel Seat or Clamp Type
Flow: Nominal 23 USgallons/min (87 Litres/min) at 1750rpm
Pressure: Pressure up to 4 bar
Impeller: 3A Food Grade Neoprene or EPDM
Shaft Seal: Mechanical; Carbon-on-Ceramic or Tungsten Carbide; Food Grade Nitrile
Shaft: 316 Stainless Steel
APPLICATIONS:
Handles soft solids - max. 12mm diameter. Certified to US 3A Standard 02-09. Clean-In-Place (CIP) or easy strip clean. Handles viscosities up to 50,000 centiPoise. Minimal shear to thixotropic fluids. Easy to service and maintain. Self-priming from dry up to 2.4m (7.8ft). DAIRY: Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS: Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter. BEVERAGE: Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL: Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
View full details
Pump Body: 316 Stainless Steel Pedestal Pump
Port Size: 1" ACME Threads with Bevel Seat or Clamp Type
Flow: Nominal 23 USgallons/min (87 Litres/min) at 1750rpm
Pressure: Pressure up to 4 bar
Impeller: 3A Food Grade Neoprene or EPDM
Shaft Seal: Mechanical; Carbon-on-Ceramic or Tungsten Carbide; Food Grade Nitrile
Shaft: 316 Stainless Steel
APPLICATIONS:
Handles soft solids - max. 12mm diameter. Certified to US 3A Standard 02-09. Clean-In-Place (CIP) or easy strip clean. Handles viscosities up to 50,000 centiPoise. Minimal shear to thixotropic fluids. Easy to service and maintain. Self-priming from dry up to 2.4m (7.8ft). DAIRY: Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS: Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter. BEVERAGE: Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL: Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
