Jabsco Pump # 30530-2003 Pump Head With Motor Bracket 316SS
Jabsco Pump # 30530-2003 Pump Head With Motor Bracket 316SS

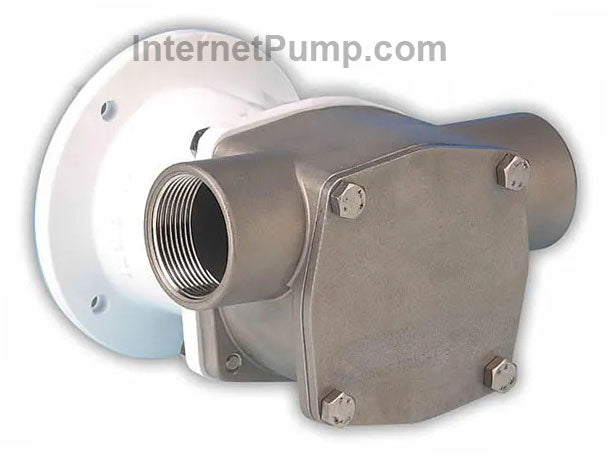

Jabsco 30530-2003 Pump Head Only With Motor Bracket 316SS 1-1/2" NPT Nitrile Impeller Carbon Seal.
Regular price
$ 4,069.88 USD
Regular price
Sale price
$ 4,069.88 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship
tomorrow before 4 PM EST.
Couldn't load pickup availability
FEATURES :
Pump Body: 316 Stainless Head with Bracket or Complete Motor Pump Unit
Port Size: 1 1/2" NPT Internal
Flow: Nominal 51 USgallons/min at 1750rpm
Pressure: Pressure up to 1.5 bar
Impeller: Neoprene, Nitrile, Viton or EPDM
Shaft Seal: Mechanical; Carbon-on-Ceramic, or Tungsten Carbide; Nitrile or Viton
Shaft: 316 Stainless Steel
Motor: 5 HP, 230/430 VAC 3Phase, 1750 RPM, TEFC, 184 TC Frame, C-Face.
APPLICATIONS:
Constructed from marine quality bronze and stainless steel for ruggedness and reliability. Easy to service and maintain. Inexpensive to buy and operate. Will tolerate abrasive wear. Handles hard and soft solids without clogging. Self-priming from dry up to 2.4m (7.8ft). INDUSTRIAL: Circulating and transferring, velocity-mixing, pumping machine tool coolants, spill return, sump drainage, chemicals, pharmaceuticals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine ,brine, etc. PHARMACEUTICAL: Processing medicines, lotions and preparations. Filtering pharmaceutical solutions.Filling line supply pump. PAPER PROCESSING: Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. FOOD, BEVERAGE & DAIRY: Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts, etc. Removal of distillery wort and brewery slop. Processing viscous materials such as peanut butter, mayonnaise, ketchup, honey, etc. (low speed). Pumping whisky, wine, rums, juices and ciders. AGRICULTURAL: Transferring liquid fertilizers, herbicides and pesticides.
